GENERAL INTRODUCTION

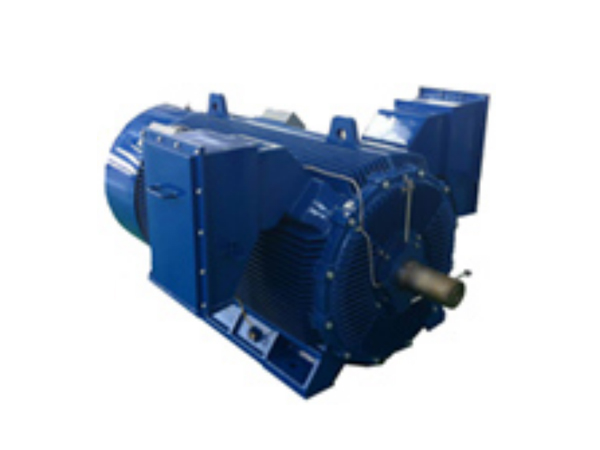

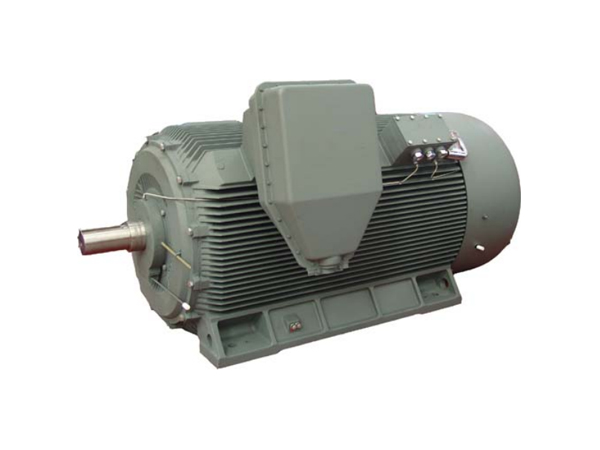

HHV series high efficiency & high voltage electric motors (center height H 355-560 mm, 185kw - 1800kw, 2P-8P) are designed for operating in the toughest application with low maintenance costs.

Standard Features:

1.  Voltage:  6000V, 6600V, 10000V, 11000V,400/690V, 50/60HZ, IP54, Class F, TEFC ;

2.   Cast Iron Frames 355-560,

3.   Class "F" Insulation

4.   Continuous Duty-S1

5.   Ambient Temp. 40℃

6.   Altitude: 1000M

7.   Dimensions According To IEC-72

8.   Performance According To IEC-34

9.   Regreasing Nipples

10.  Metric Thread Cable Entries In Terminal Box

11.  PTC Thermistors

12.  Paint Color Blue: RAL5010 Or Others

Optional Features:

1.  Suitable For VFD application

2.  Encode

3.  IP55

4.  Second Terminal Box:  For Y Connection

5.  Special Bearing

6.  Thermometer On Bearings With Gauge.

7.  Special Shaft Dimensions

8.  Other Voltage And Frequency
